arbon Steel Push And Pull Type Hydraulic Quick Couplings For Agriculture Machine
Features:
1. Double acting sleeve for one handed operation when coupler is
clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Ball valves available for rugged dependability in heavy-duty
hydraulic applications, within rated working pressure.
4. Critical parts are induction hardened for durability
5. Dependable ball-locking mechanism holds the mating halves
together.
6. Couplers and nipple are precision machined from solid bar stock.
Specifications:
| Body size (in) | 3/8 1/2 |
| Rated Pressure (Bar) | 200 200 |
| Material: | Carbon steel |
| Standard seal material: | NBR (other material is available on request) |
| Temperature Range (Std seals): | -20°C to +80°C |
Couplers-Female Thread
| Part No. | Thread Size BSPP | E Overall Length (mm.) | F Hex Size (mm.) | G Largest Diameter (mm.) | Part No. | Thread Size NPT | E Overall Length (in.) | F Hex Size (in.) | G Largest Diameter (in.) |
| KZA-03SF | G3/8" | 59.0 | 24.0 | 33.0 | KZA-N03SF | NPT3/8" | 2.31 | 0.94 | 1.31 |
| KZA-04SF | G1/2" | 68.0 | 27.0 | 38.0 | KZA-N04SF | NPT1/2" | 2.68 | 1.06 | 1.50 |
| KZA-22SF | M22*1.5 | 68.0 | 27.0 | 38.0 | KZA-22SF | M22*1.5 | 2.68 | 1.06 | 1.50 |
| KZA-08SF | G1" | 101.0 | 42.0 | 54.0 | KZA-N08SF | NPT1 | 3.98 | 1.65 | 2.13 |
Nipples-Female Thread
| Part No. | Thread Size BSPP | A Overall Length (mm.) | C Hex Size (mm.) | D Largest Diameter (mm.) | Part No. | Thread Size NPT | A Overall Length (in.) | C Hex Size (in.) | D Largest Diameter (in.) |
| KZA-03PF | G3/8" | 41.0 | 24.0 | 27.0 | KZA-N03PF | NPT3/8" | 1.60 | 0.94 | 1.08 |
| KZA-04PF | G1/2" | 50.0 | 27.0 | 31.0 | KZA-N04PF | NPT1/2" | 1.95 | 1.06 | 1.23 |
| KZA-22PF | M22*1.5 | 50.0 | 27.0 | 31.0 | KZA-22PF | M22*1.5 | 1.95 | 1.06 | 1.23 |
| KZA-08PF | G1/" | 72.0 | 38.0 | 44.0 | KZA-N08PF | NPT1" | 2.95 | 1.5 | 1.73 |
Nipples-Male Thread
| Part No. | Thread Size BSPP | T (mm.) | E Overall Length (mm.) | F Hex Size (mm.) | G Largest Diameter (mm.) |
| KZA-14SF-M | M14X1.5 | 8.0 | 72.0 | 27.0 | 38.0 |
| KZA-16SF-M | M16X1.5 | 10.0 | 72.0 | 27.0 | 38.0 |
| KZA-18SF-M | M18X1.5 | 12.0 | 72.0 | 27.0 | 38.0 |
| KZA-22SF-M | M22X1.5 | 15.0 | 72.0 | 27.0 | 38.0 |
| KZA-24SF-M | M24X1.5 | 16.0 | 72.0 | 27.0 | 38.0 |
| KZA-26SF-M | M26X1.5 | 18.0 | 72.0 | 27.0 | 38.0 |
| KZA-30SF-M | M30X2 | 20 | 72.0 | 27.0 | 38.0 |

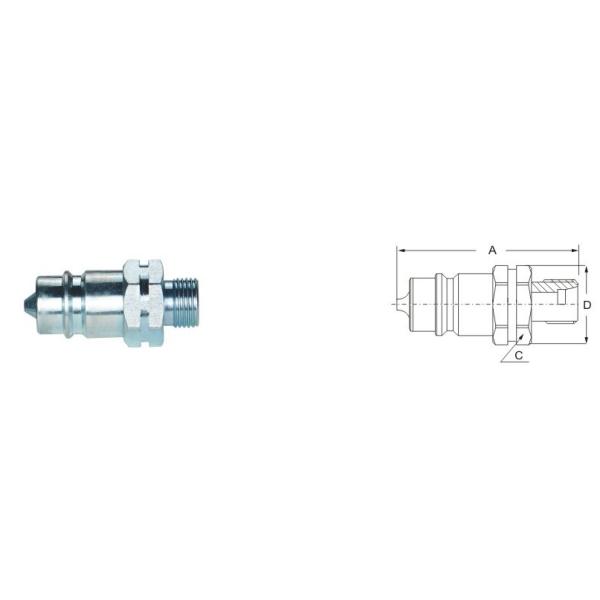

Nipples-Male Thread
| Part No. | Thread Size BSPP | T (mm.) | A Overall Length (mm.) | C Hex Size (mm.) | D Largest Diameter (mm.) |
| KZA-14PF-M | M14X1.5 | 8.0 | 56.0 | 27.0 | 31.0 |
| KZA-16PF-M | M16X1.5 | 10.0 | 56.0 | 27.0 | 31.0 |
| KZA-18PF-M | M18X1.5 | 12.0 | 56.0 | 27.0 | 31.0 |
| KZA-22PF-M | M22X1.5 | 15.0 | 56.0 | 27.0 | 31.0 |
| KZA-24PF-M | M24X1.5 | 16.0 | 58 | 27 | 31.0 |
| KZA-26PF-M | M26X1.5 | 18.0 | 60 | 30 | 34.0 |
| KZA-30PF-M | M30X2 | 20 | 62 | 30 | 34.0 |
|
|
